4. GFS Configuration

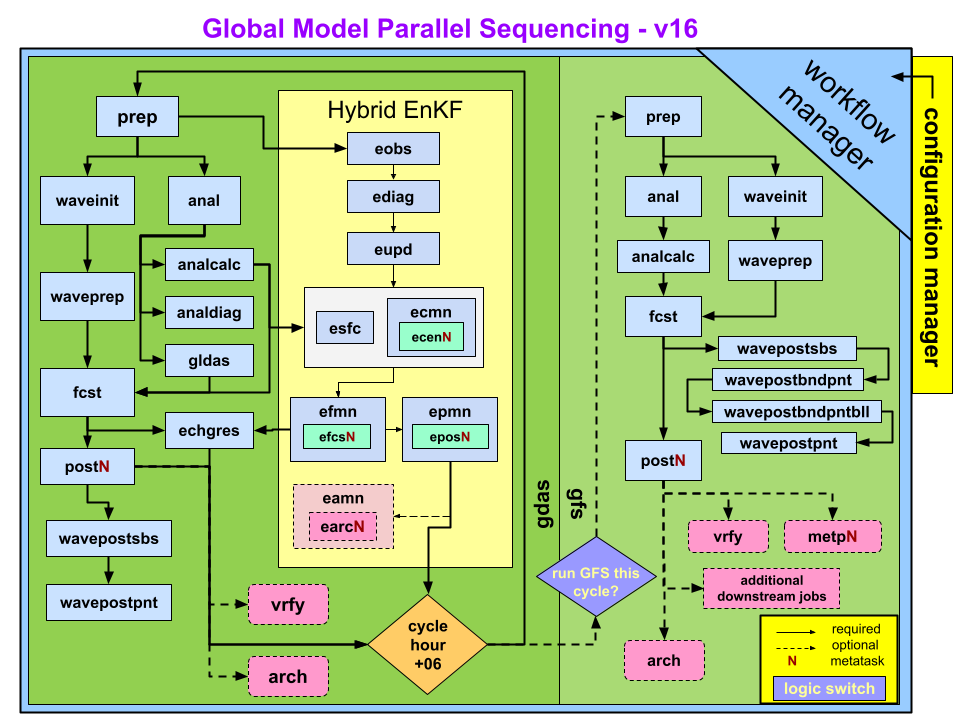

Fig. 4.1 Schematic flow chart for GFS v16 in operations

The sequence of jobs that are run for an end-to-end (analysis+forecast+post processing+verification) GFS configuration using the Global Workflow is shown above. The system utilizes a collection of scripts that perform the tasks for each step.

For any cycle the system consists of two suites – the “gdas” suite which provides the initial guess fields, and the “gfs” suite which creates the initial conditions and forecast of the system.

An experimental run is different from operations in the following ways:

• Workflow manager: operations utilizes ecFlow, while development currently utilizes ROCOTO. Note, experiments can also be run using ecFlow on platforms with ecFlow servers established.

• Dump step is not run as it has already been completed during the real-time production runs and dump data is available in the global dump archive on supported machines.

• Addition steps in experimental mode:

  • archive (arch_vrfy & arch_tars)

  • cleanup (cleanup)

Downstream jobs (e.g. awips, gempak, etc.) are not included in the diagram. Those jobs are not normally run in developmental tests.

4.1. Jobs in the GFS Configuration

JOB NAME	PURPOSE
anal	Runs the analysis. 1) Runs the atmospheric analysis (global_gsi) to produce analysis increments; 2) Update surface guess file via global_cycle to create surface analysis on tiles.
analcalc	Adds the analysis increments to previous cycle’s forecasts to produce atmospheric analysis files. Produces surface analysis file on Gaussian grid.
analdiag	Creates netCDF diagnostic files containing observation values, innovation (O-F), error, quality control, as well as other analysis-related quantities (cnvstat, radstat, ozstat files).
arch_vrfy	Archives select files from the deterministic model and cleans up older data.
arch_tars	Optional archive job that backs up the COM data structure.
globus_arch	Optional archive job that sends the tarballs generated by arch_tars to HPSS via globus.
earcN/eamn	Archival script for EnKF that write selected EnKF output to HPSS or locally Additional archival script that pushes data to HPSS via Mercury.
globus_earcN
ecenN/ecmn	Recenter ensemble members around hi-res deterministic analysis. GFS v16 recenters ensemble member analysis. increments.
echgres	Runs chgres on full-resolution forecast for EnKF recentering (ecen).
ediag	Same as analdiag but for ensemble members.
efcsN/efmn	Run 9 hour forecast for each ensemble member. There are 80 ensemble members. Each efcs job sequentially processes 8 ensemble members, so there are 10 efcs jobs in total.
eobs	Data selection for EnKF update (eupd).
eposN/epmn	Generate ensemble mean atmospheric and surface forecast files. The ensemble spread is also computed for atmospheric forecast files.
esfc	Generate ensemble surface analyses on tiles.
eupd	Perform EnKF update (i.e., generate ensemble member analyses).
fcst	Runs the forecast (with or without one-way waves).
metpN	Runs MET/METplus verification via EMC_verif-global.
prep	Runs the data preprocessing prior to the analysis (storm relocation if needed and generation of prepbufr file).
postN	Runs the post processor.
waveinit	Runs wave initialization step.
waveprep	Runs wave prep step.
wavepostsbs	Runs wave post-processing side-by-side.
wavepostbndpnt	Runs wave post-processing for boundary points.
wavepostbndpntbll	Runs wave post-processing for boundary points bulletins.
wavepostpnt	Runs wave post-processing for points.
